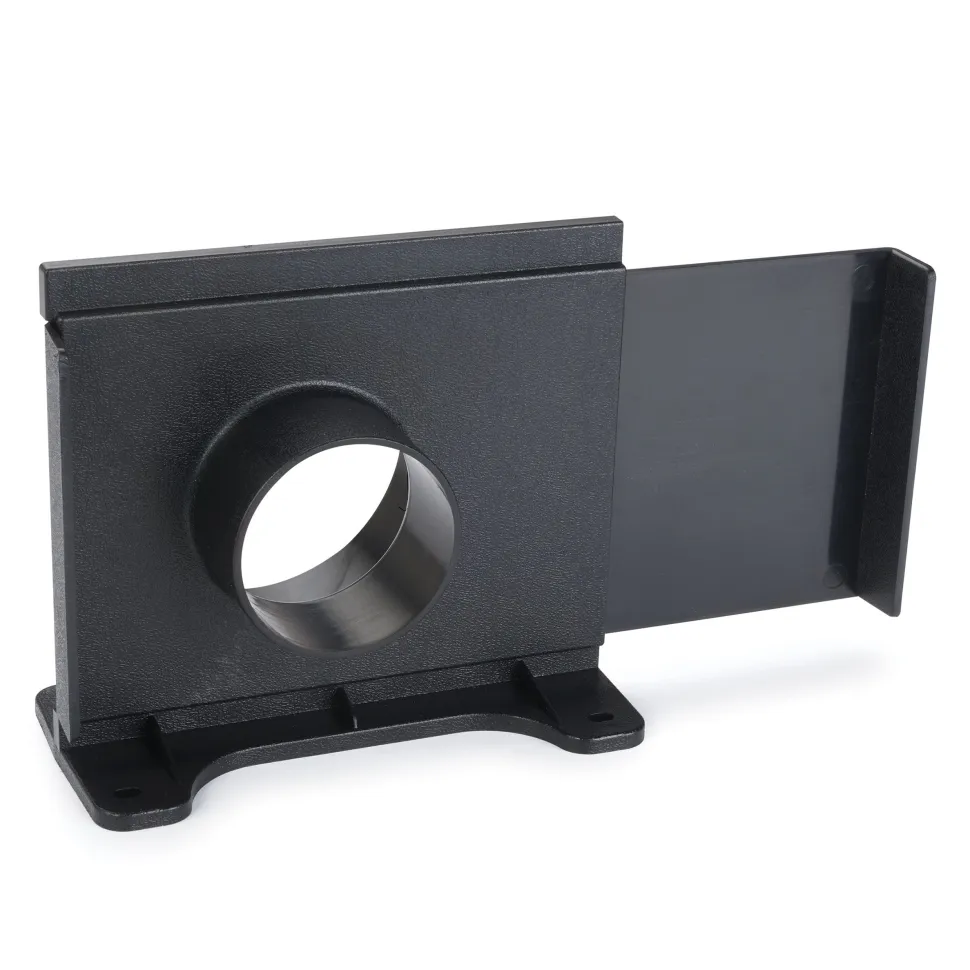

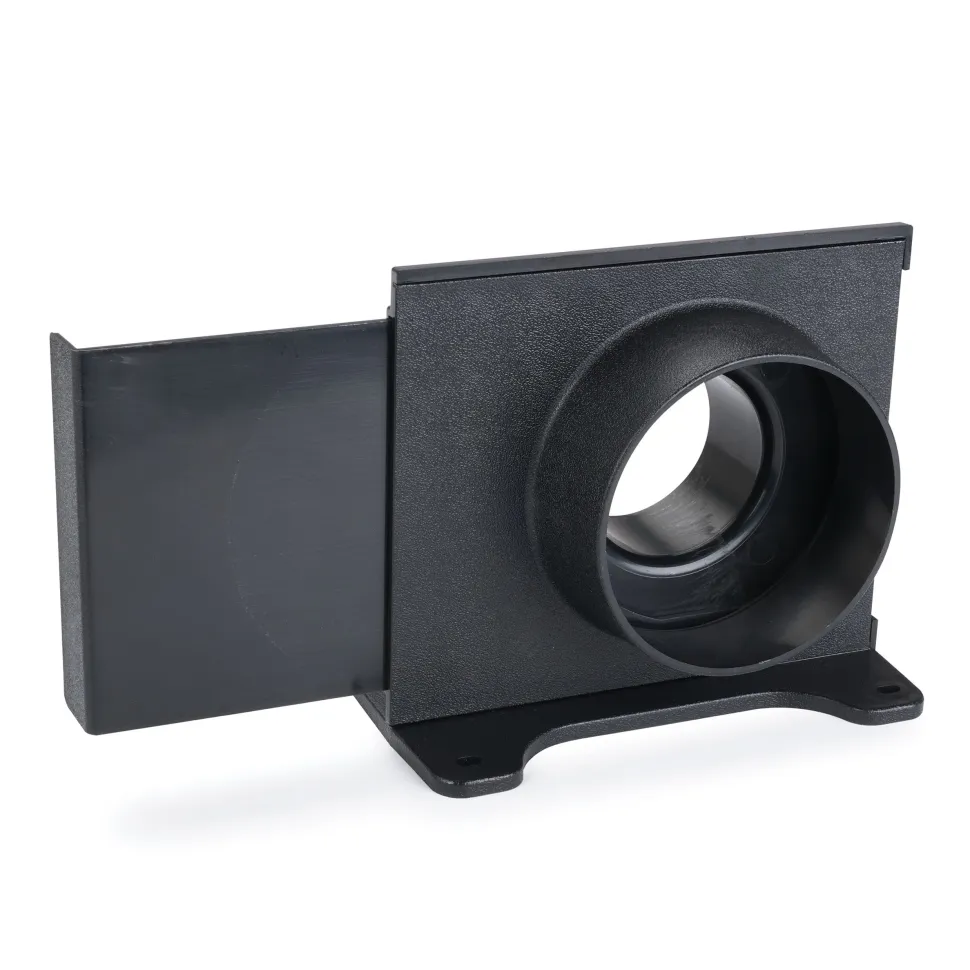

Wall Mount Self-Clean Reducer Blast Gate 4″ to 2-1/2″

Wall mount feature on this WoodRiver® Dust Connection® Self-Clean Reducer Blast Gate provides a large, 6-1/2″ x 3-1/4″ flange with mounting holes to attach the fitting on the wall in either the horizontal or vertical direction. Self-clean design has rectangular plate with opening on one end that moves inside a 2-sided frame to prevent clogging. Blast gate function provides a pass-through or shutoff to connect your shop vacuum to your central dust collection system or a branch line to one of your tools. Molded fitting has overall dimensions of 10-1/4″ long and 5-1/2″ wide in the open or closed position. 4″ OD port on one side of the gate is 1-1/2″ long; 2-1/2″ OD port on other side is 1-1/4″ long. Both ports provide room to slide on hose and apply hose clamps at each connection. Molded using ABS material to maintain shape and withstand woodshop environment.

Features:
