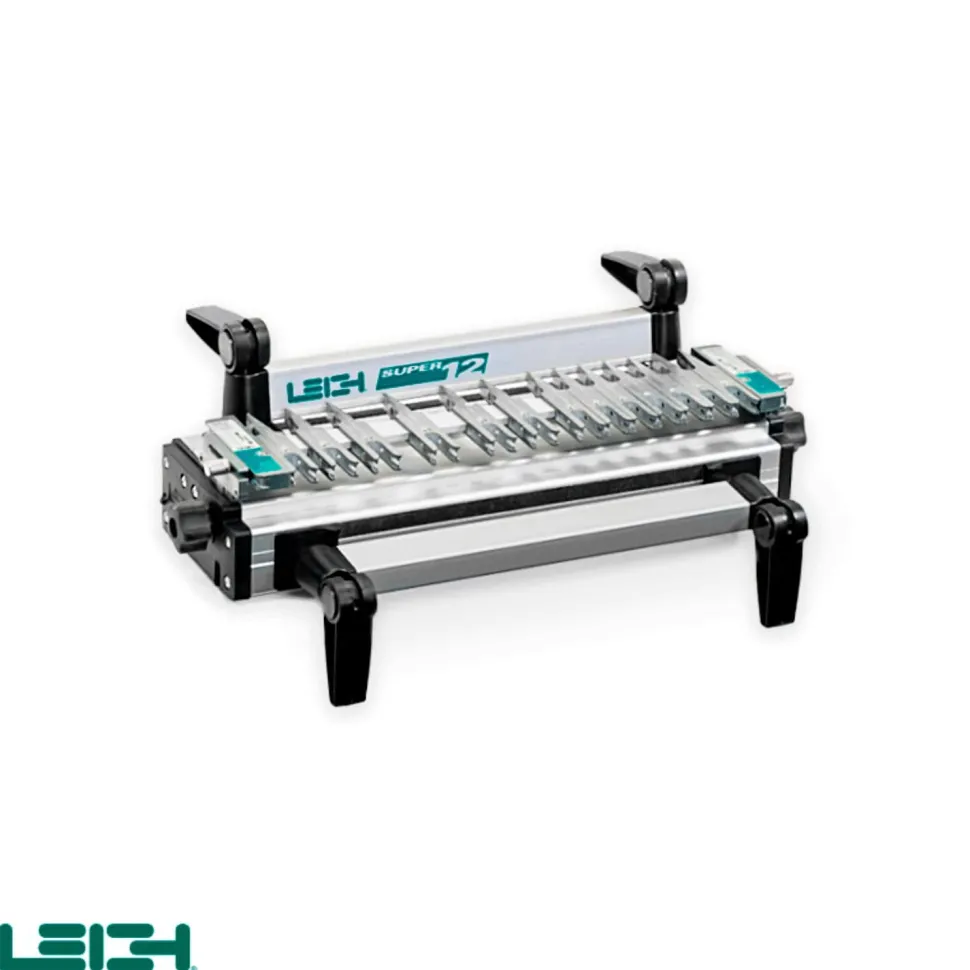

Super 12″ Dovetail Jig

Super Leigh Dovetail jigs offer extraordinary joint making capability at exceptional price points. No other jigs equal the versatility and precision of Leigh Dovetail jigs. Variably spaced through and half-blind dovetails are standard on all super jigs. Infinitely adjustable one-piece fingers are easily positioned for any joint pattern, guaranteeing a half pin at each edge of the joint, regardless of board width. The cross-cut fence fits on the dovetail finger assembly to become a sliding dovetail template. Rout half-blind pin boards and tail boards at the same time using the included two-function spacer to offset the tail board and rout complete joints in one pass with the Leigh Dovetail Jig, you’re not limited to one bit and one depth of cut.
Just select any of the five half-blind bits available and rout half-blind joints in the depth that best suits your project. The finger assembly can also produce two sizes of box joints, 5/16″ and 5/8″. The amazing joint making capability of super jigs is due in part to the revolutionary new Leigh E-bush. Very precise adjustments for fit are made easily with the E-bush. Settings are changed using the included pin wrench and the uniquely shaped locking nut makes tightening the E-bush a snap. Markings clearly indicate the adjustment direction necessary for the desired change. A simple twist of the E-bush changes its active diameter which in turn changes the fit of finger joints and half-blind dovetails. Easy to use cam action clamps and aluminum clamp bars hold the work piece securely against non-slip material applied to each clamping surface. Includes: 1/2″-8 degree dovetail bit, 1/2″-14 degree dovetail bit, 5/16″ straight bit, 1/2″ to 8mm collet reducer, sliding dovetail fence, half-blind bridge piece material, E-bush and fully illustrated user guide.

Features:
•Leigh Dovetail Jig Specifications:
•Accepts boards up to 12″
•Includes 3 router bits
•Infinitely adjustable one-piece fingers
•Super 12″ dovetail jig
