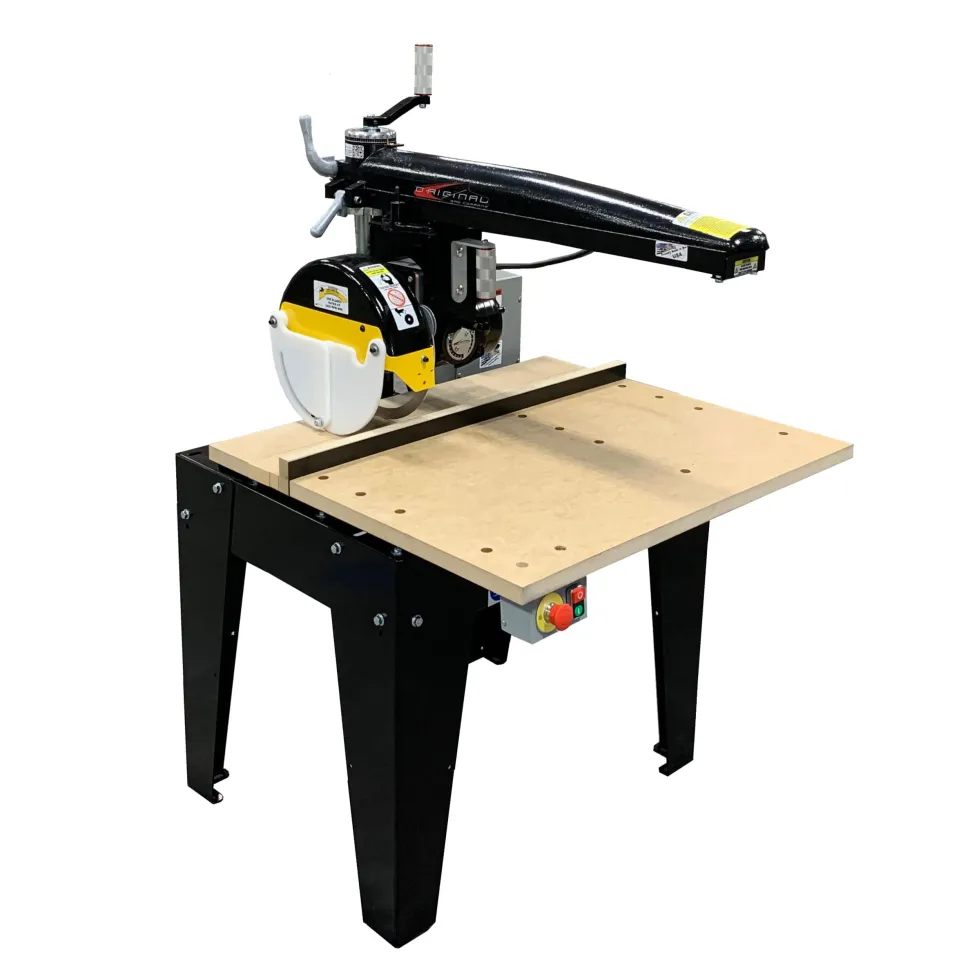

Radial Arm Saw with 12″ Blade and 24″ Crosscut, 3HP 1 Phase 208/230V
122,99 $
Crosscut, bevel cut, miter cut, and swivel to a rip position to precisely cut down panels all with this one radial arm saw. This versatile saw by The Original Saw Company is well suited for wood cutting up to 3” as well as cutting off 24” wide panels for squaring shelving and doors, and other similar applications.
This Contractor Series radial arm saw is a workhorse with a 3HP, 1 Phase, 208/230V TEFC motor and internal automatic brake. It has the best cut quality in its class and is a very precise cutting machine with repeatable accuracy that can be depended on day-after-day for years to come. These machines are fully assembled and tested in The Original Saw Company’s facility and then packaged. This makes setting up your saw a snap.
Features:
Connecting Electrical Current
The motor is properly connected to the magnetic switch at the factory for operation on the electrical voltage specified on the tag attached to the guard stud. Make sure incoming voltage from your power supply conforms to the voltage specified on the tag.
Remove the magnetic switch cover and insert power supply cable through the dust proof fitting. Connect wires to L1, L2 and L3 for 3PH; L1 and L2 for 1PH. (See manual, page 14, left photo). Do not attach power to the transformer. Attach the ground wire to the ground lug inside the enclosure. Wiring must conform to the National Electrical Code and any applicable local codes.
