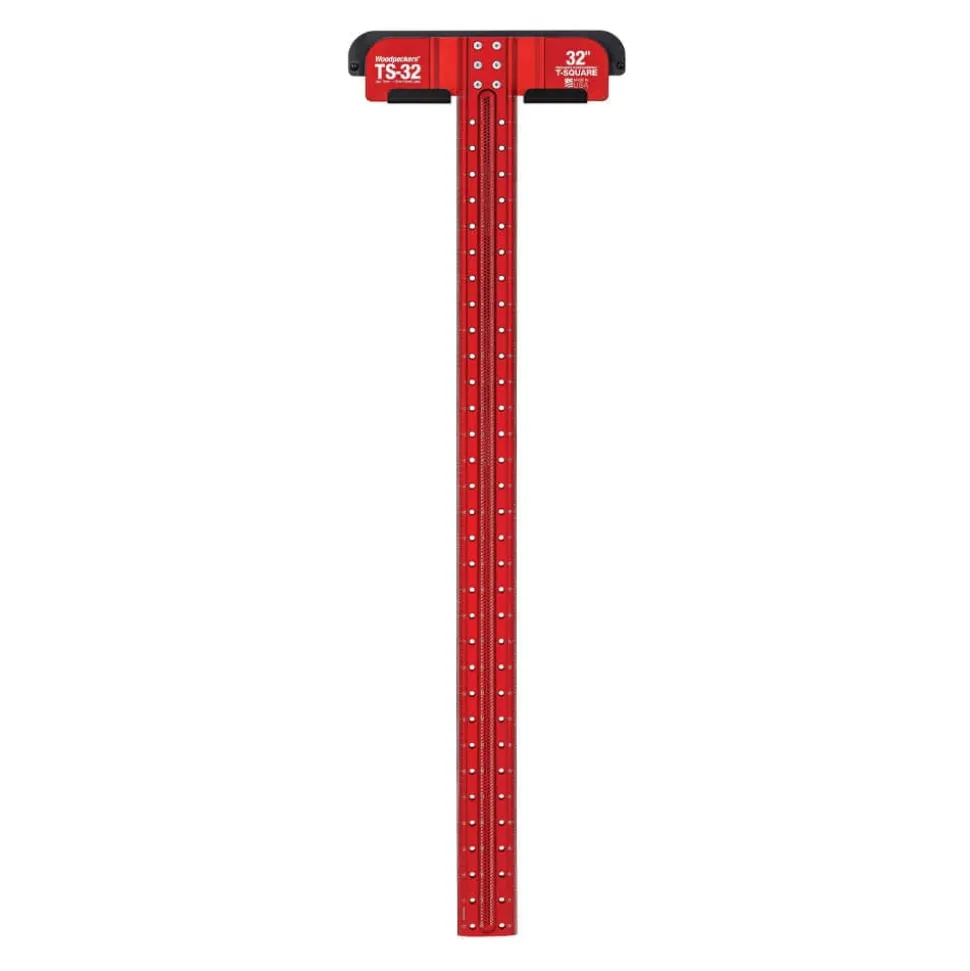

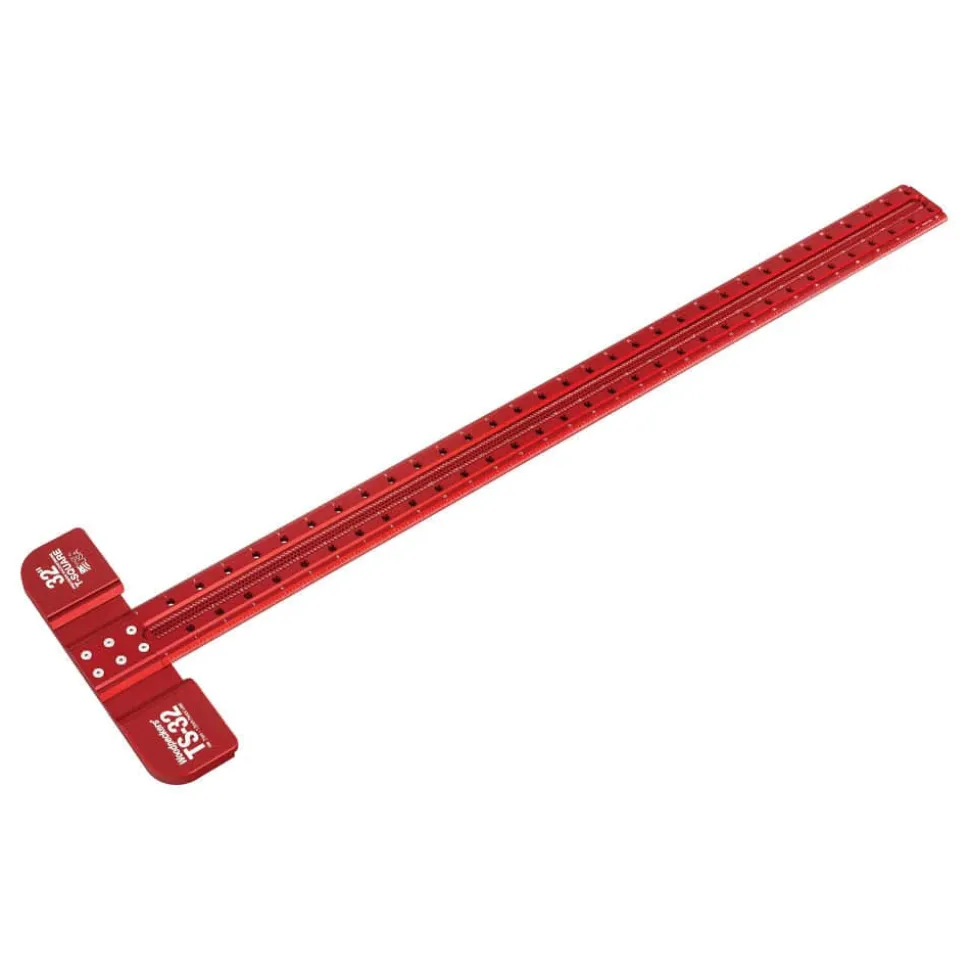

Precision T-Square with Rack-It 32″

Striking lines parallel with the edge of your stock couldn’t be easier, once you have a Woodpeckers Precision T-Square in your shop. The beam has two support lips that rest on the top surface of your stock, preventing the tool from rolling like many other T-squares. Precision-machined scribing guides are spaced every 1/16″ along the length of the blade. Just drop in the point of a mechanical pencil and scribe a perfectly parallel line by holding the pencil in one hand and sliding the T-square with the other. In addition to the scribing guides, there are 1/4″-diameter holes on 1″ centers, ideal for laying out shelf pins.

Each Woodpeckers T-Square consists of a laser-engraved aluminum blade matched to a precision machined beam. The two critical components are secured together with stainless steel screws.A slight offset between the holes in the blade and the threads in the beam put the two under constant tension. This design delivers an angular precision of ±.02 degrees (.004″ per foot). It delivers top-notch performance yet allows the blade to be replaced should it get damaged.

The edges of the blade are beveled 30°, putting the scale markings directly against your stock, eliminating parallax error. The scales are laser-engraved to a tolerance of ±.004″ total accumulated error. The white engraving on the famous “Woodpeckers Red” anodized finish delivers a very readable contrast, even for older eyes or poor lighting conditions. Each T-Square includes a wall-mountable Rack-It™ to keep your Precision T-Square right in plain sight and always ready for the next project.

Like all Woodpeckers products, this T-Square is proudly machined and carefully inspected in the Strongsville, OH facility, just south of Cleveland.
