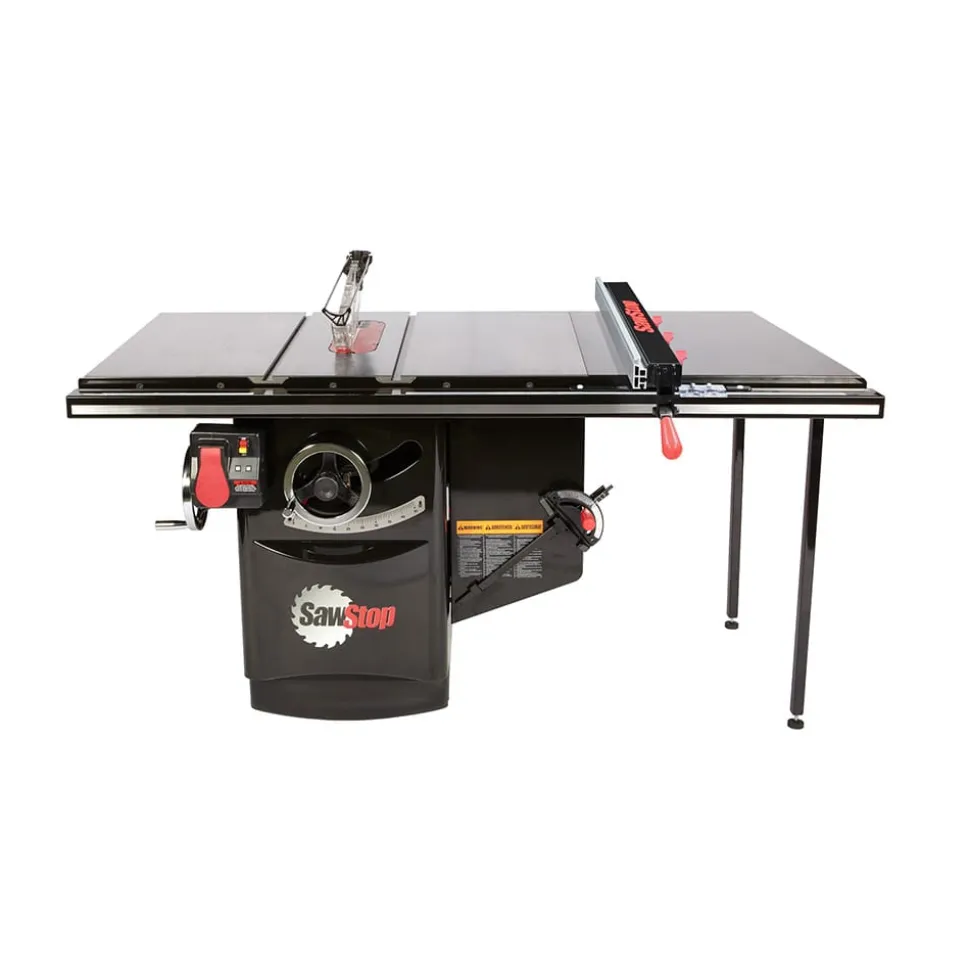

Industrial Cabinet Saw with 36″ Industrial T-Glide Advance Fence System 5 HP 3PH 230V

Original price was: 5 986,00 $.Current price is: 134,89 $.

SKU: SKUK7P307 Categories: Saws, Table Saws, Woodworking Machines Tag: Sawstop Brand: Sawstop

Description
Reviews (0)

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10″ cabinet saw available. The 5HP, 3ph, 230v configuration with a 36″ Industrial T-Glide Advance Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.

Features:

SawStop’s patented safety system

Riving knife reduces the risk of kickback

Tool-free quick-change blade guard mount

Diagnostic system ensures the saw is ready to respond

Dust-Collection Blade Guard

36″ Industrial T-Glide Advance Fence System

Specifications:

Overall saw dimensions: 69-1/4″ wide x 36-1/2″ deep x 34″ high

Cabinet footprint: 20″ x 25″

Cast-iron table: 24″ w x 30″ d

Cast-iron table size with extension wings: 44″ w x 30″ d

Motor: 5 HP, 3-Phase, 230V 60 HZ

Weight: 635 lbs.

Blade: 60-tooth, professional grade, 5/8″ arbor

Blade diameter: 10″

Blade tilt: left

Blade kerf: 0.118″ (3 mm)

Blade plate thickness: 0.078″

Max. depth of cut, blade at 0º: 3-1/8″

Max. depth of cut, blade at 45º: 2-1/4″

Max. rip, left of blade: 12-1/2″

Dado diameter: 8″ (requires a separate brake cartridge and table insert)

Dado max. width: 13/16″

Arbor diameter at blade: 5/8″

Table in front of blade (max. elevation): 11″

Table behind blade (max. elevation): 9-3/4″

Table flatness measured diagonally: 0.010″ maximum gap

Miter slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep

Dust-collection port diameter: 4″

Riving knife/splitter thickness: 0.090″ (2.3 mm)

Insert: zero clearance, phenolic core, melamine surfaces

Belts: 2 V-ribbed belts

What’s Included:

(1) SawStop Industrial Cabinet Saw with 36″ Industrial T-Glide Advance Fence System – 5 HP – 3PH – 230V
