Sale!

Automatic Edgebander PCR- 1 Ph- 220V

Original price was: 36 900,00 $.Current price is: 134,89 $.

SKU: SKU93U6HK Categories: Edgebanding Equipment, Woodworking Machines Tag: Maksiwa Brand: Maksiwa

Description
Reviews (0)

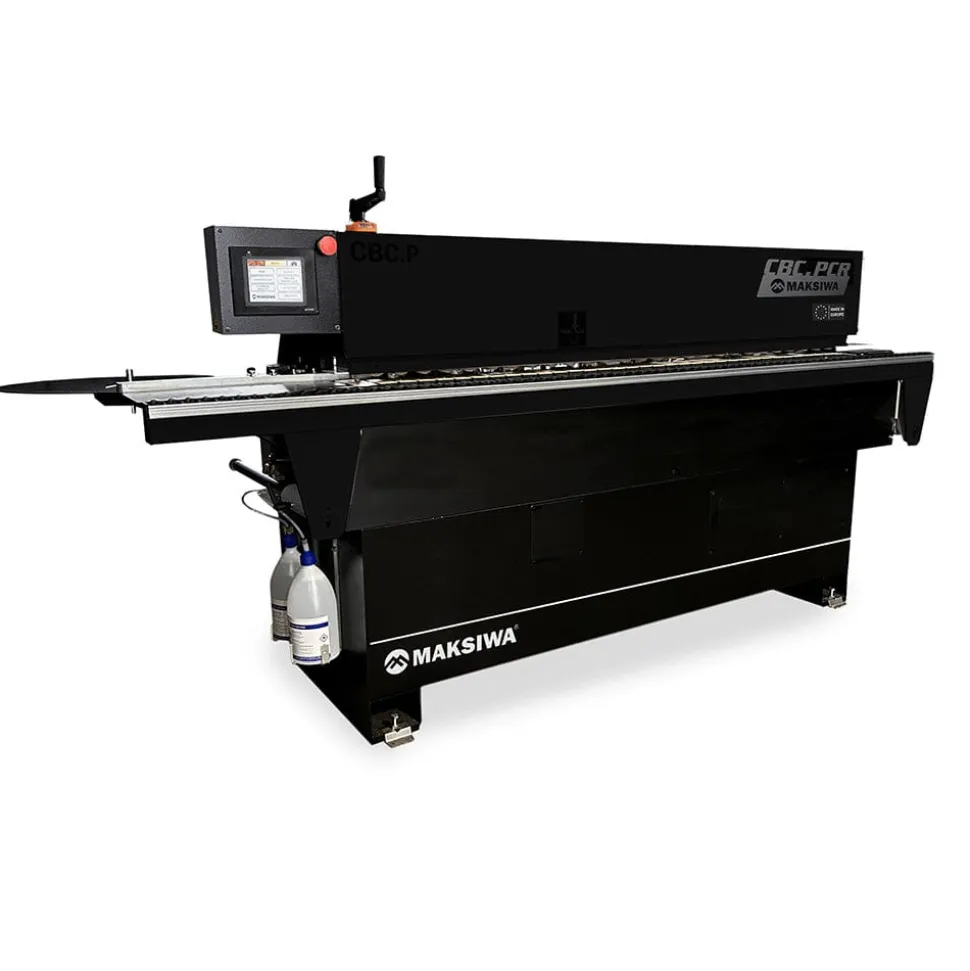

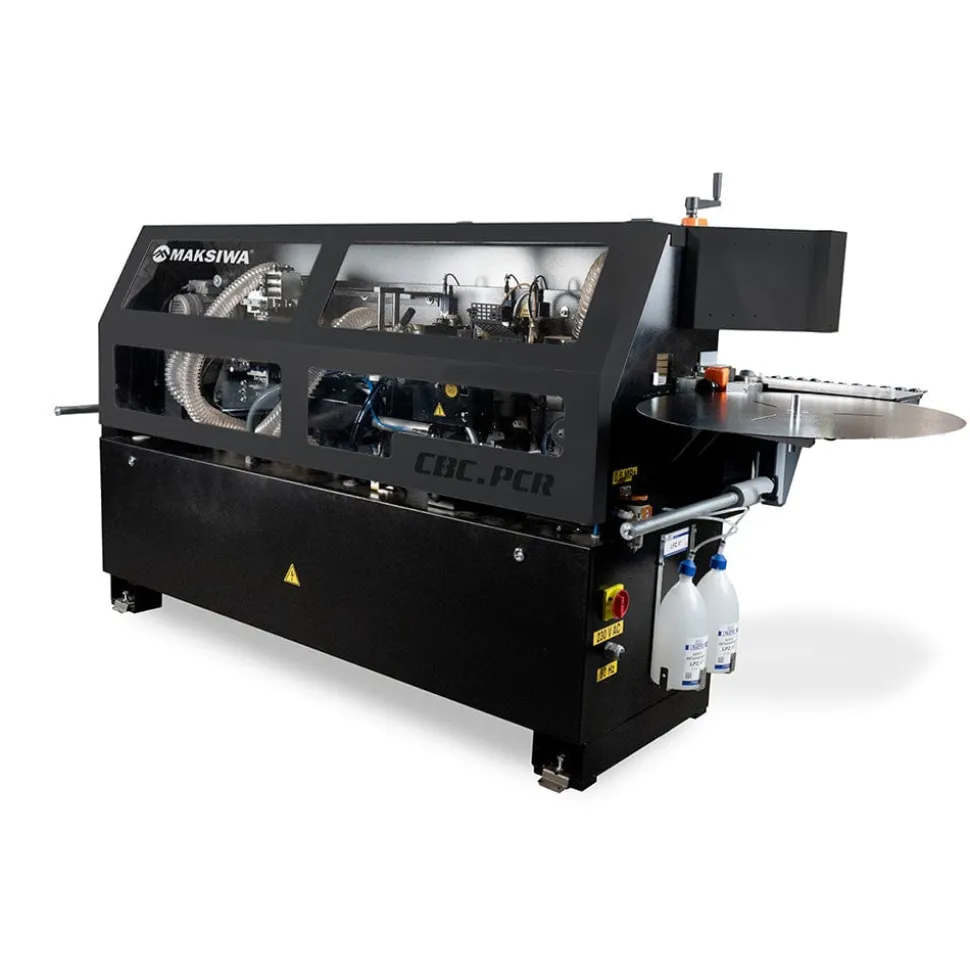

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with the highly requested corner rounding feature. It also includes pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot system supports EVA and PUR adhesives. With a 8HP motor and user-friendly PCL touchscreen, it handles edge tapes of 0.4-3mm and panel thicknesses from 10-50mm.

Features:

Edge Tape: 0.4-3 mm

Panel Thickness: 8-50mm

1 Phase 220V 60Hz

Corner Rounding Unit

Glue Scraper Unit

Buffing Unit

End Trimming HF Motor

Pre-milling Unit 2 HF Motors with Diamond Cutters

XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)

C.A.S.S – Cleaning Agent Spraying System

Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated

Automatic feeding Speed 18 ft/min

Conveyor Chain Feed System for optimum results.

HF motors controlled by independent electronic converters

Net Weight 1411 Lbs | 640 kgs

Compact Design

Melamine/PVC/ABS/PP

Specifications:

Automatic Feeding speed: 18 ft/min

Panel Thickness Min/Max: 21/64” – 1 31/32”

Max Pre-milling Height: 1”

Edgebanding Thickness: 0.0157″ – 0.118″

Glue Pot Capacity: 3.3lbs

Max Edgebanding Height: 2″

Minimum Panel Width: 3″

Minimum Panel Length: 7 7/8″

Extendable Panel Support Rail Length: 103″

Extension Table Max Width: 54″

Size of Dust Collector Ports: 6″

Minimum Dust Collection Requirements: 1236 CFM

Air Pressure Requirement: 14 SCFM @ 87PSI

Edgebanding Coil Support Diameter: 59″

Recommend Glue Temperature Range: 356°F – 410°F

Max. Machine Dimensions (LxWxH): 119”x 40 16/16”x 48. 7/16”

Net Weight: 1411 LBS

Shipping Dimensions (LxWxH): 111” x 30” x 57”

Glue Type: Granulated Hot-Melt EVA / PUR

Electrical Information: 1 Phase, 220V, 60Hz
