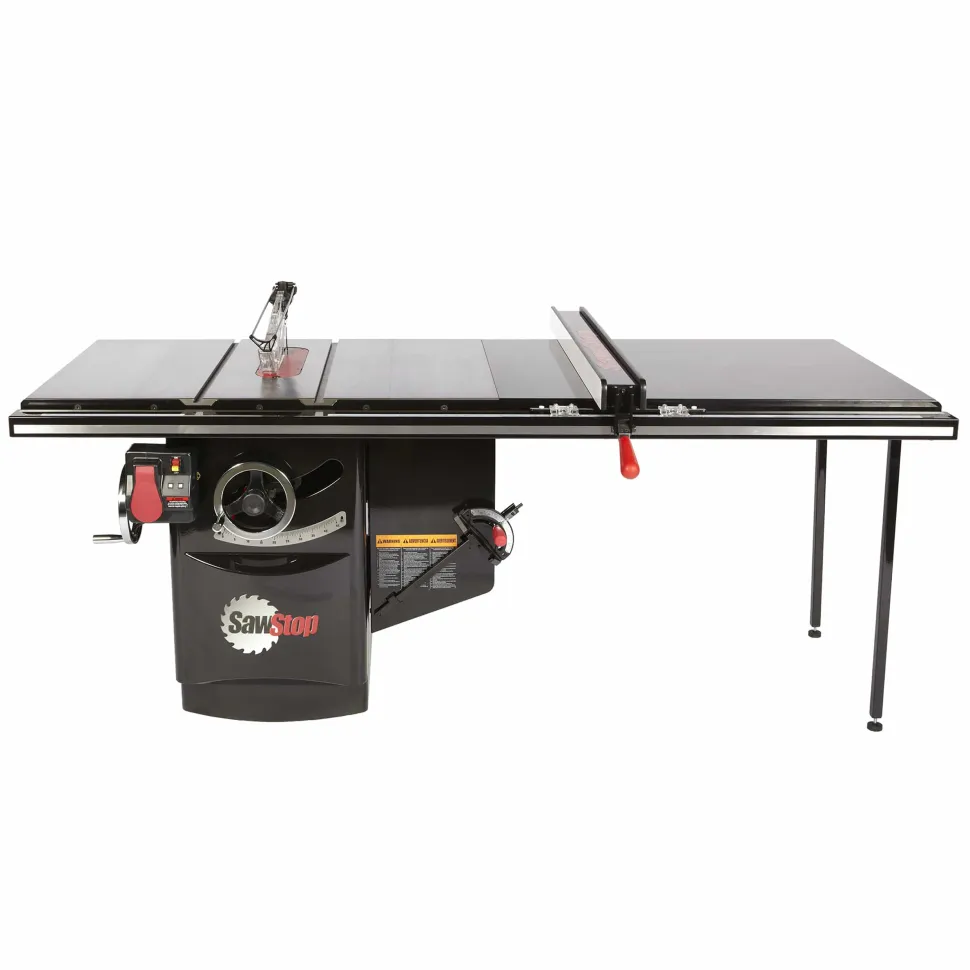

7.5HP 3PH 230V Industrial Cabinet Saw with 52″ Industrial T-Glide Fence System

138,89 $

SKU: SKURMGJAZ Categories: Saws, Table Saws, Woodworking Machines Tag: Sawstop Brand: Sawstop

Description
Reviews (0)

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10″ cabinet saw available. The 7.5 HP, 3 PH, 230V configuration with a 52″ Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.
Features

SawStop’s patented safety system

Riving knife reduces the risk of kickback

Tool-free quick-change blade guard mount

Diagnostic system ensures the saw is ready to respond

Dust-Collection Blade Guard

52″ Industrial T-Glide Fence System

Specifications

Motor: 7.5 HP, 3-phase, 230V 60 HZ

Overall saw dimensions: 85-1/4″ W x 36-1/2″ D x 34″ H

Cabinet footprint: 20″ x 25″

Cast-iron table: 24″ W x 30″ D

Cast-iron table size with extension wings: 44″ W x 30″ D

Blade: 60-tooth, professional grade, 5/8″ arbor

Blade diameter: 10″

Blade tilt: left

Blade kerf: 0.118″ (3mm)

Blade plate thickness: 0.078″

Max. depth of cut, blade at 0º: 3-1/8″

Max. depth of cut, blade at 45º: 2-1/4″

Max. rip, left of blade: 12-1/2″

Dado diameter: 8″ (requires a separate brake cartridge and table insert)

Dado max. width: 13/16″

Arbor diameter at blade: 5/8″

Table in front of blade (max. elevation): 11″

Table behind blade (max. elevation): 9-3/4″

Table flatness measured diagonally: 0.010″ maximum gap

Miter slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep

Dust-collection port diameter: 4″

Riving knife/splitter thickness: 0.090″ (2.3mm)

Insert: zero clearance, phenolic core, melamine surfaces

Belts: 2 V-ribbed belts

Weight: 685 lbs.
